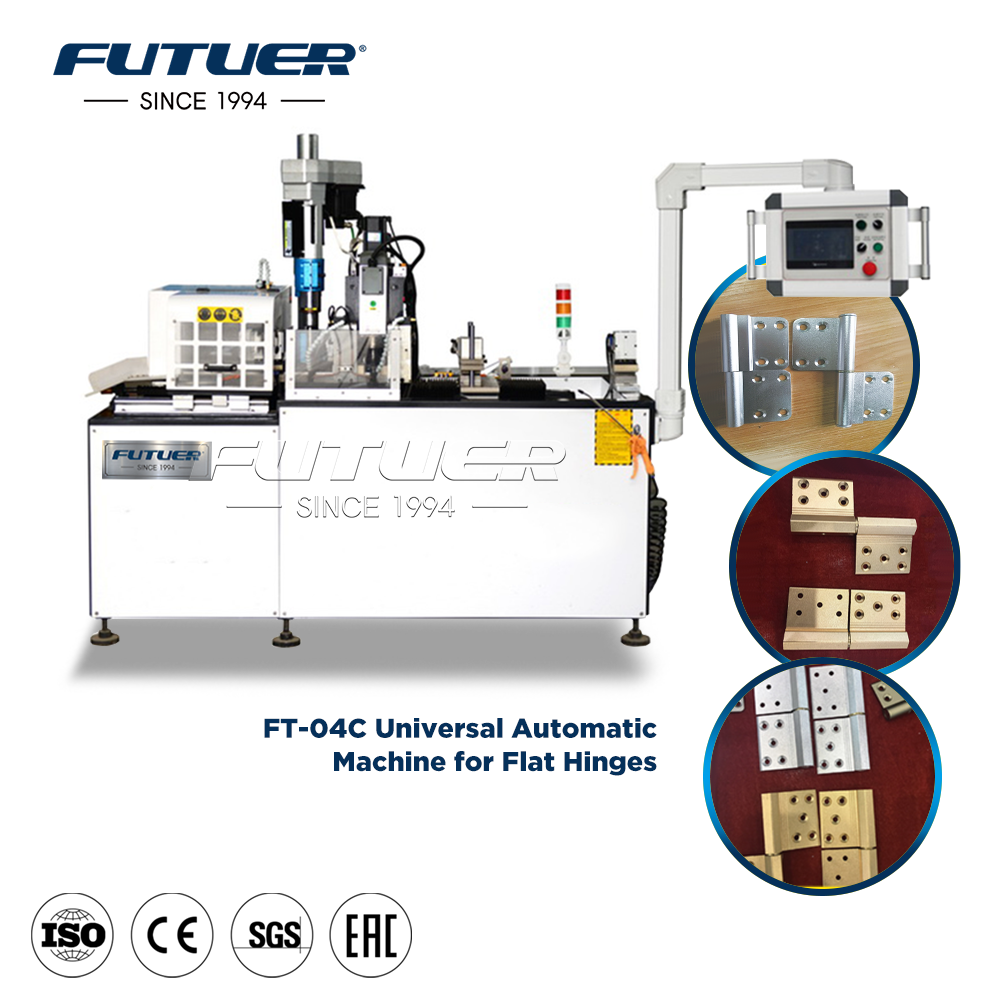

• This machine is suitable for the automatic production and processing of aluminum flat plate hinges for sliding doors. It also completes the functions of automatic feeding - drilling and countersinking - and cutting.
• This model has completely overcome the inconvenience of the previous two generations (JH-04, JH-04B flat hinge automatic machine), where using punch molds could only produce one type of hinge. Instead, it adopts a servo motor-driven drilling method, allowing the number of holes, drilling positions, and the depth of the countersunk holes to be edited on the touch screen of the automatic control system.This enables the universal processing of various different arrangements and multiple hole positions for hinges.

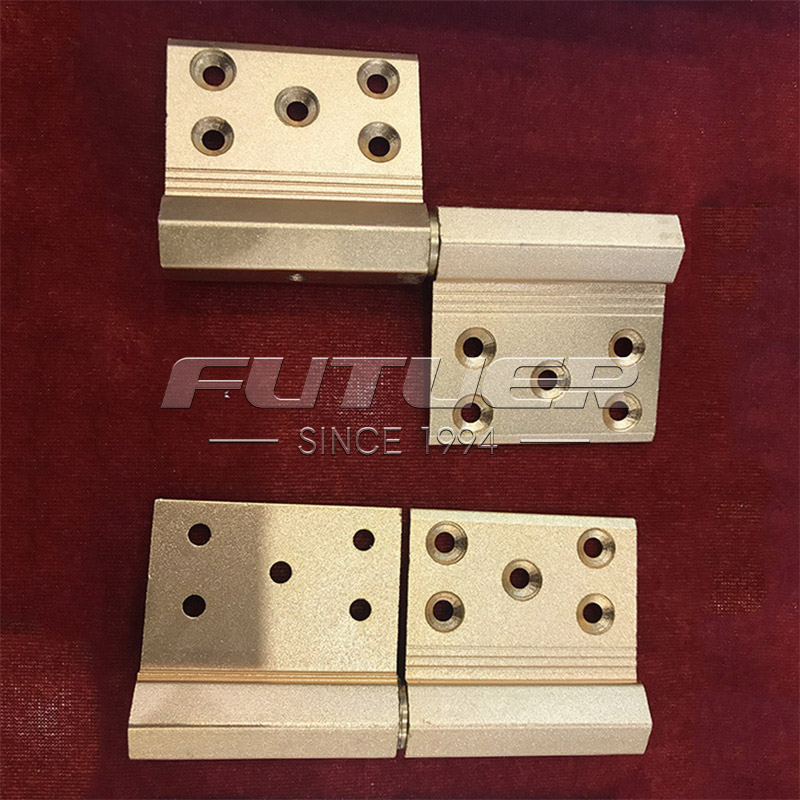

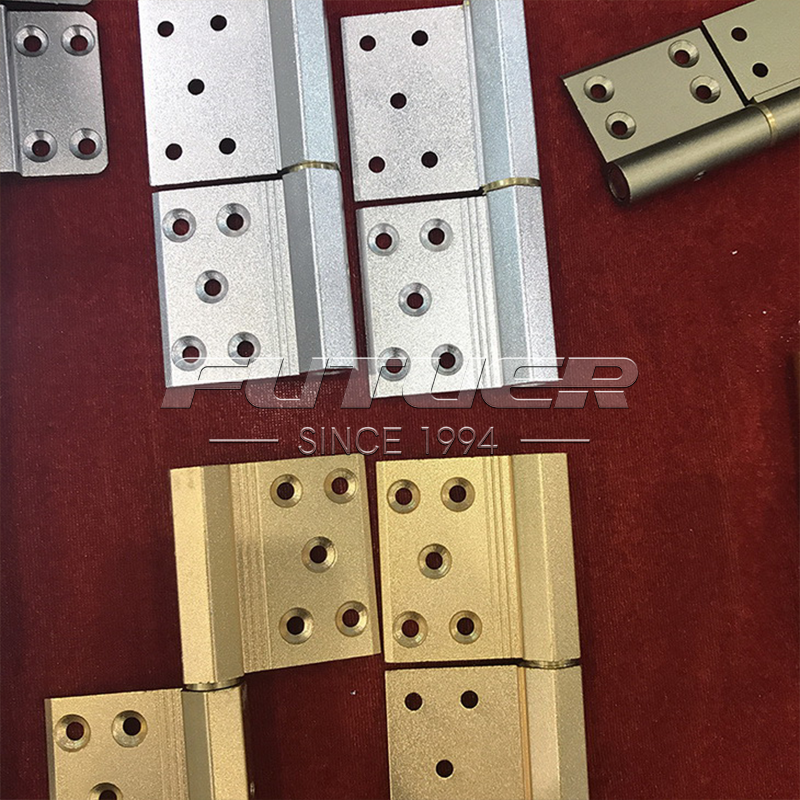

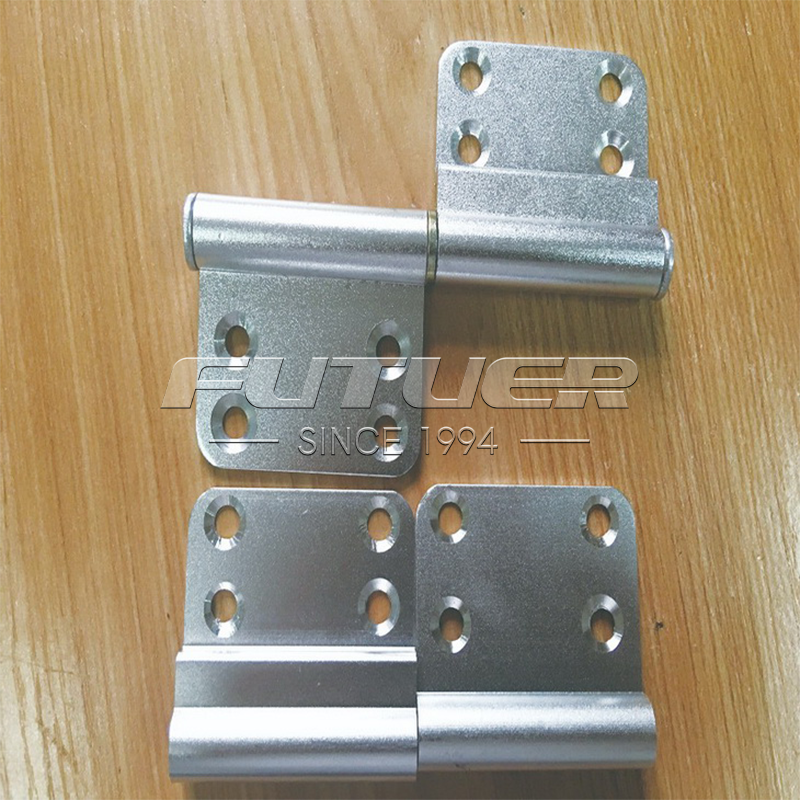

• High generalization rate: The JH-04C can theoretically process any type of flat hinge: 2-hole to 10-hole, 30-35 hinges, 40-45 hinges, 50-55 hinges, etc.... Changing the hole diameter only requires replacing the corresponding milling cutter to achieve.The depth of the blind holes can be adjusted and input on the touch screen.  Multiple varieties of flat hinges can be automatically processed with just one machine.This is a great boon for manufacturers of multiple varieties with small quantities of hinges. It lays a technical foundation for the automatic hinge machine to enter the sliding door factory.It makes it possible for sliding door factories to produce flat hinges themselves.
• The tracks are customized based on the appearance of the profiles, enabling the automatic processing of different hinges.
• Excellent tailless technology ensures no waste of aluminum profiles. It is the best model for mass production of flat hinges.
• Production cycle: 5 - 15 units per minute

Technical Specifications：
