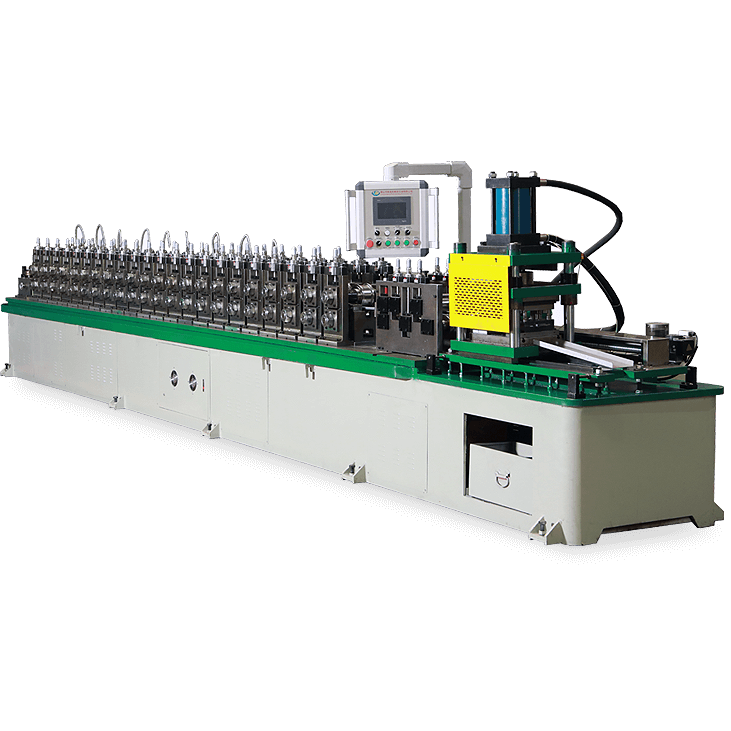

Servo Heavy duty type
Servo Heavy duty type

Servo Heavy duty type

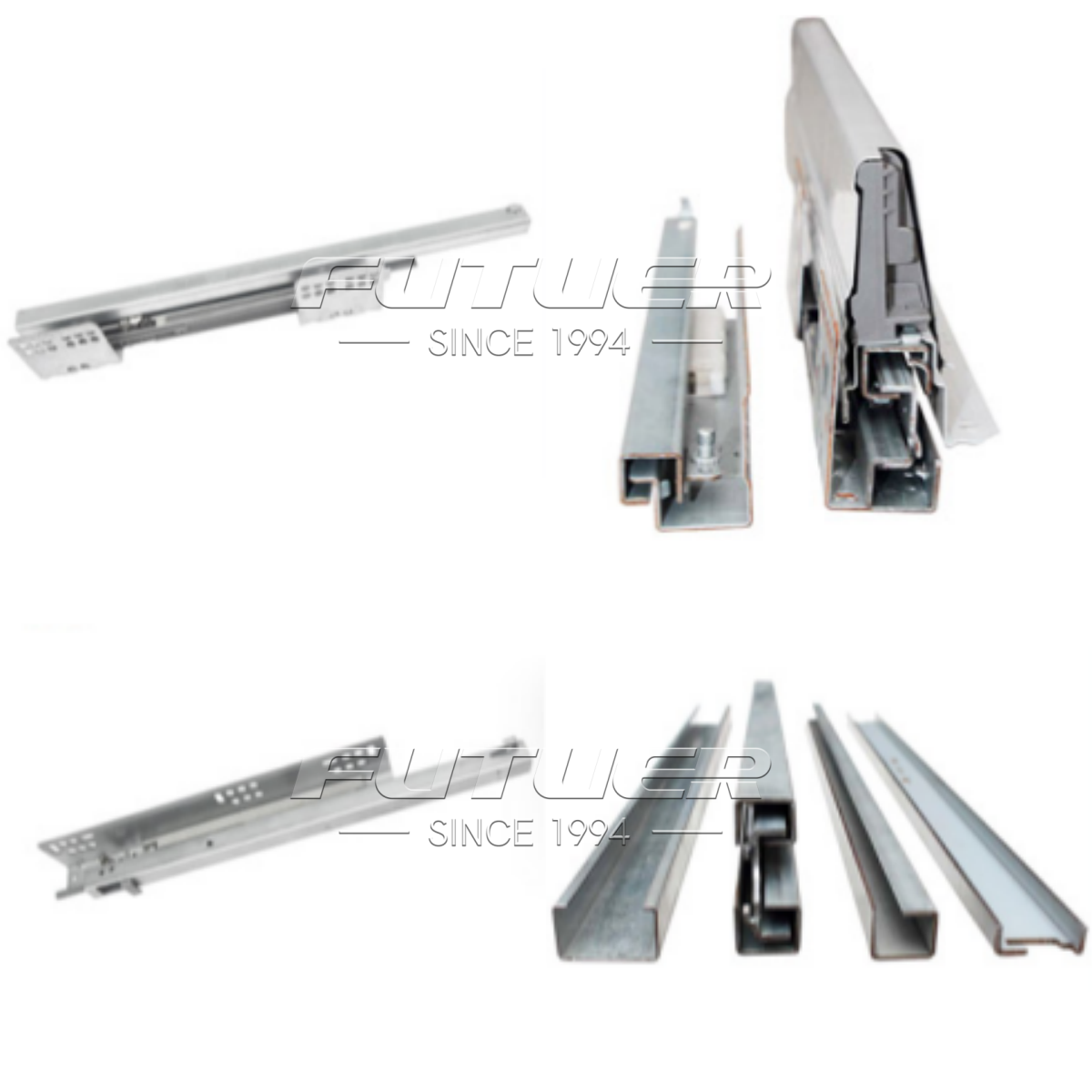

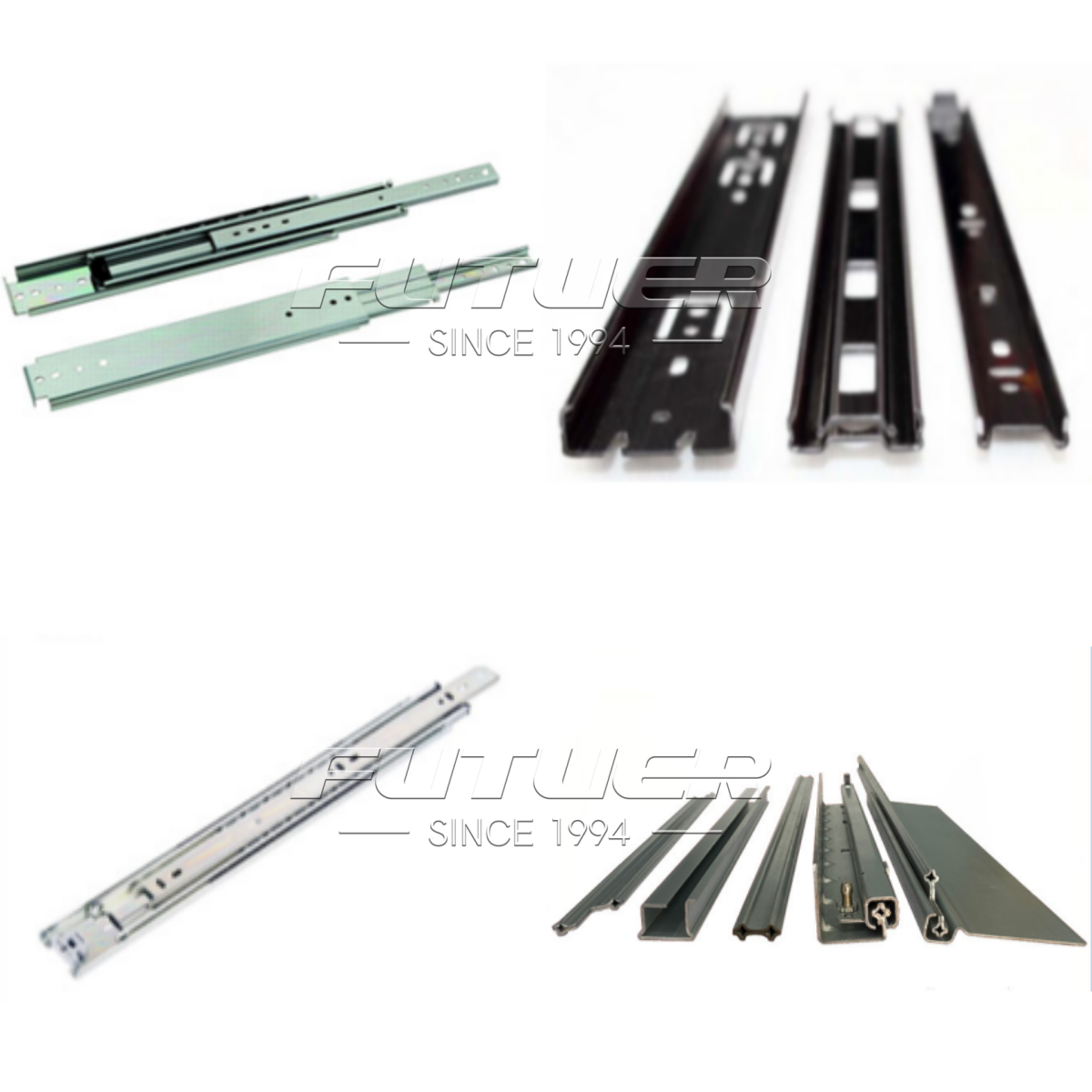

This servo heavy duty type can roll forming various types of slide rail which includes 2 section ball-bearing drawer slides, 3 section ball-bearing drawer slides, heavy-duty drawer slides, hidden slides, tandem box and so on. It uses servo-motor to driver hydraulic hole punch and cut-off to length. It not only improves the slide production efficiency, but also it is able to roll form drawer slides profile with tight tolerance.

Contact Us

Product name

Servo Heavy duty type

Power

380V/50Hz

Size

5240mmx745mmx820mm

Weight

5T

Production Capacity

12m/min

Applicable steel material

Cold roll steel, Galvanized steel,

Stainless steel

Manufaturing Process

Uncoiling → Guiding → Roll Forming → Straightening → Hole Punch and Cut-off to length









Major Components

Machine Base

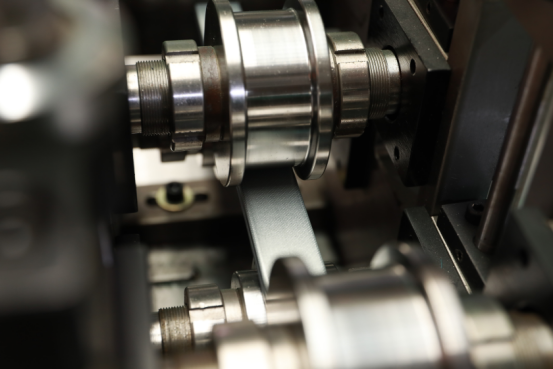

Roll Forming Stand

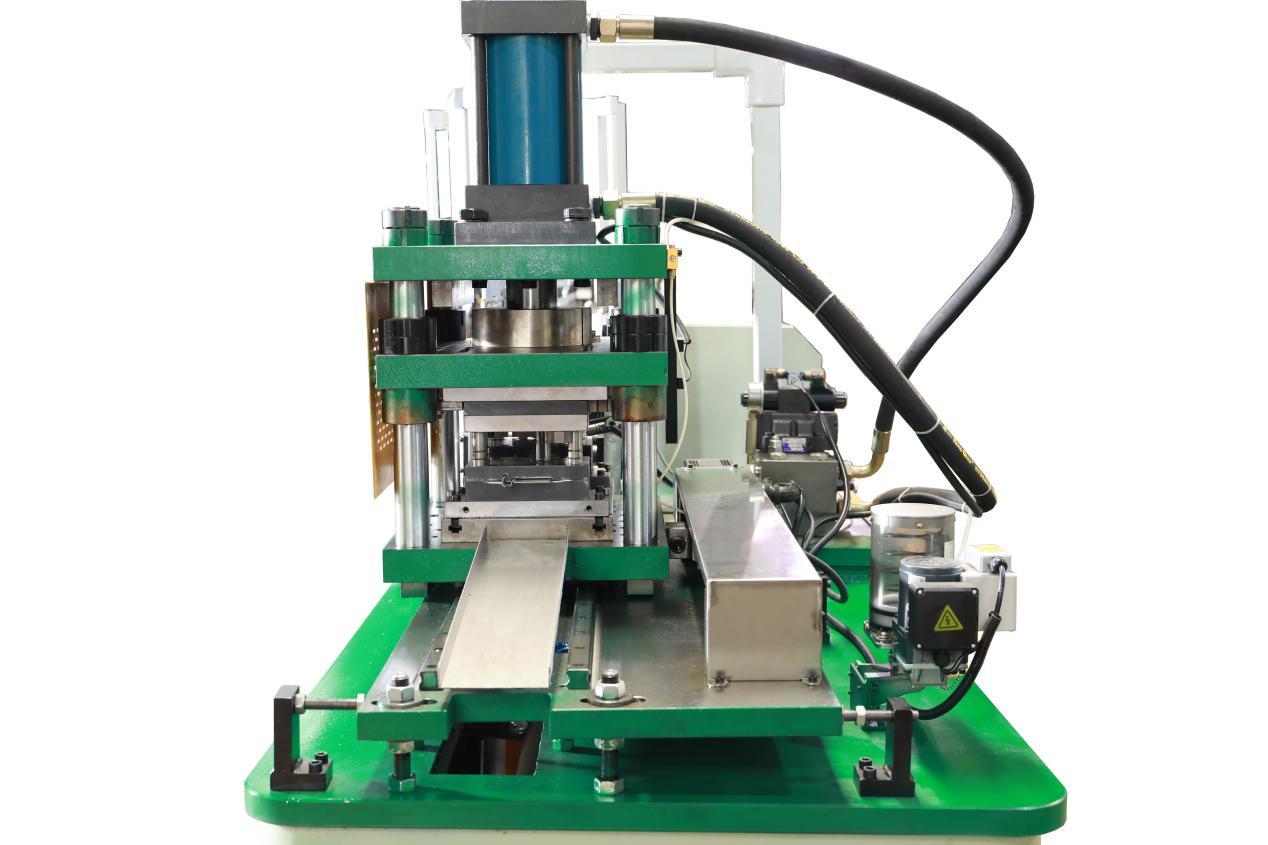

Automatic Punch and Cut-off Unit

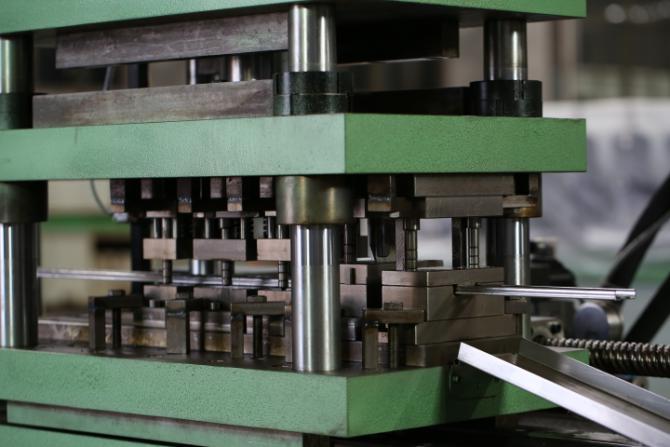

Punch and Cut-off Die

Hydraulic Power Pack

Coolant system

Single Head Decoiler

Servo-motor

Length Cut-off Device

Rail leaving device
