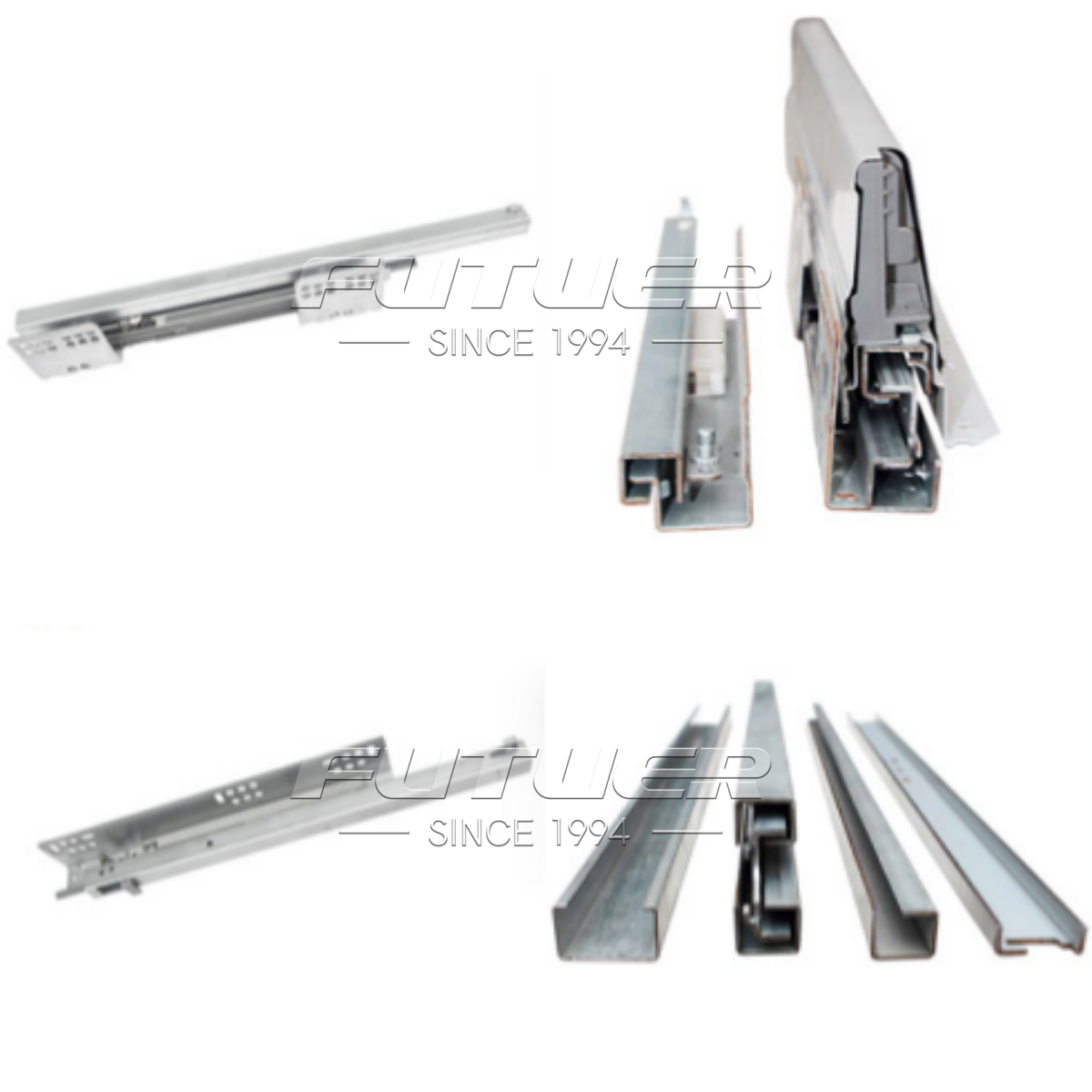

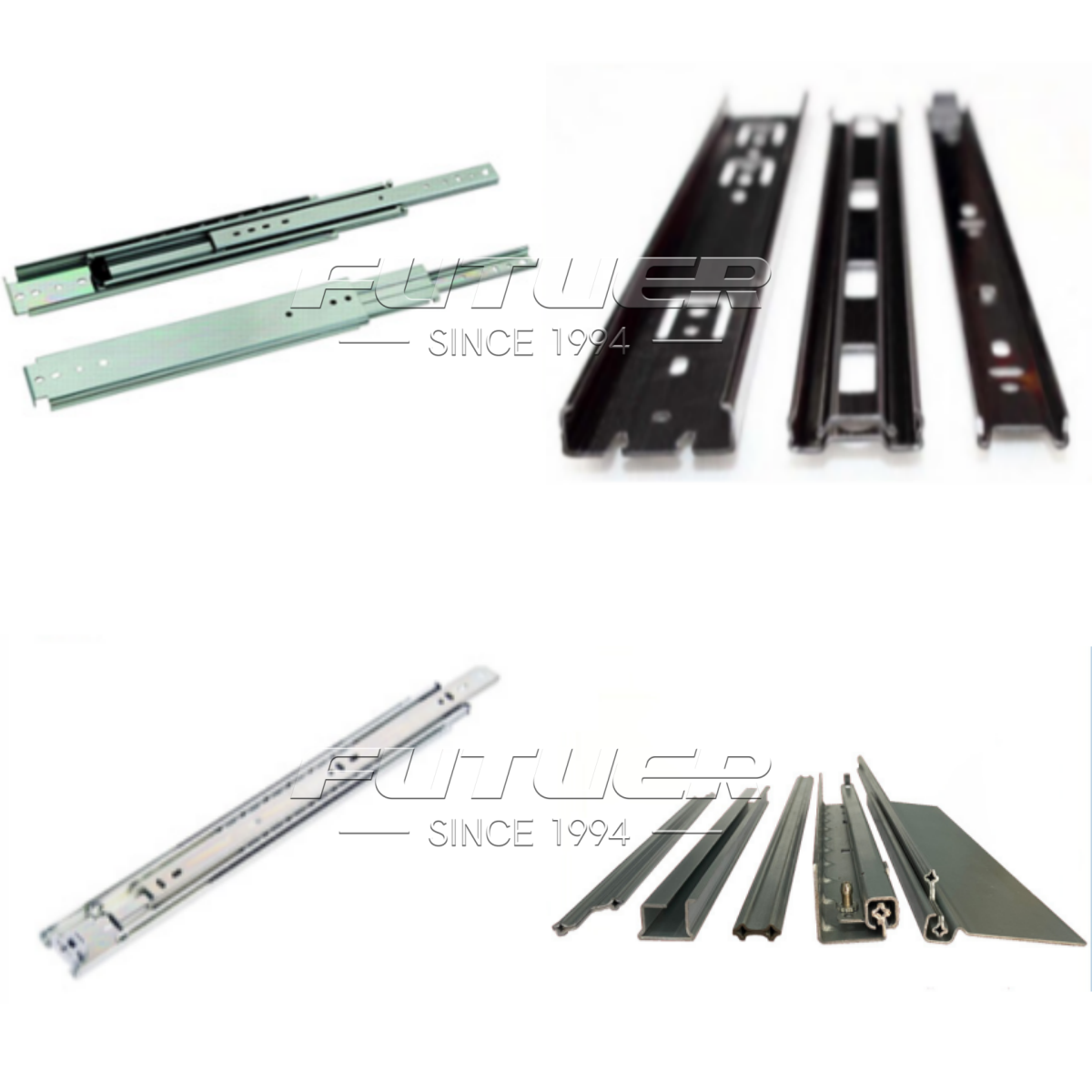

This machine is a middle-rail assembly machine which can assemble the ball cage、middle rail and middle plastic in one machine. This machine can assemble the ball cage、middle rail and middle plastic of various steel ball drawer slides

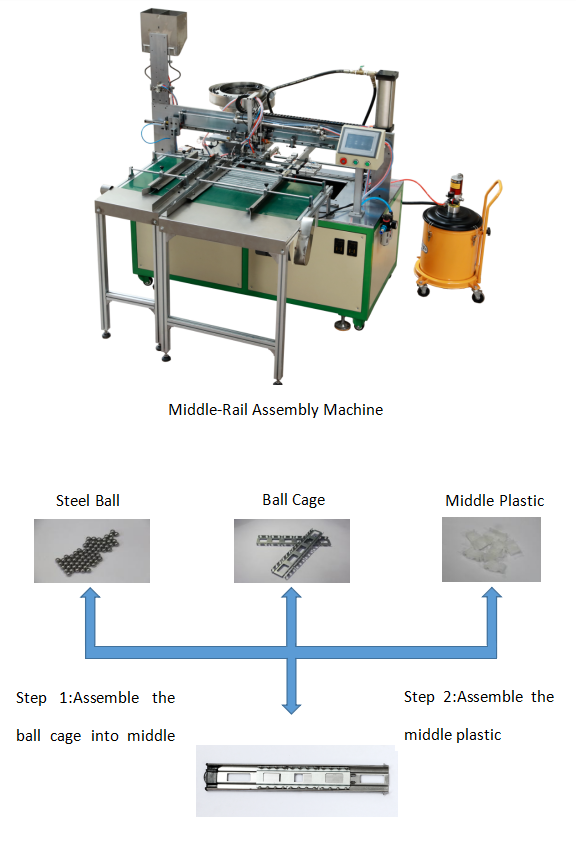

This middle-rail assembly machine consists of 2 major sections:
Section A: push the ball cage into middle rail
Section B:assemble the middle plastic
|

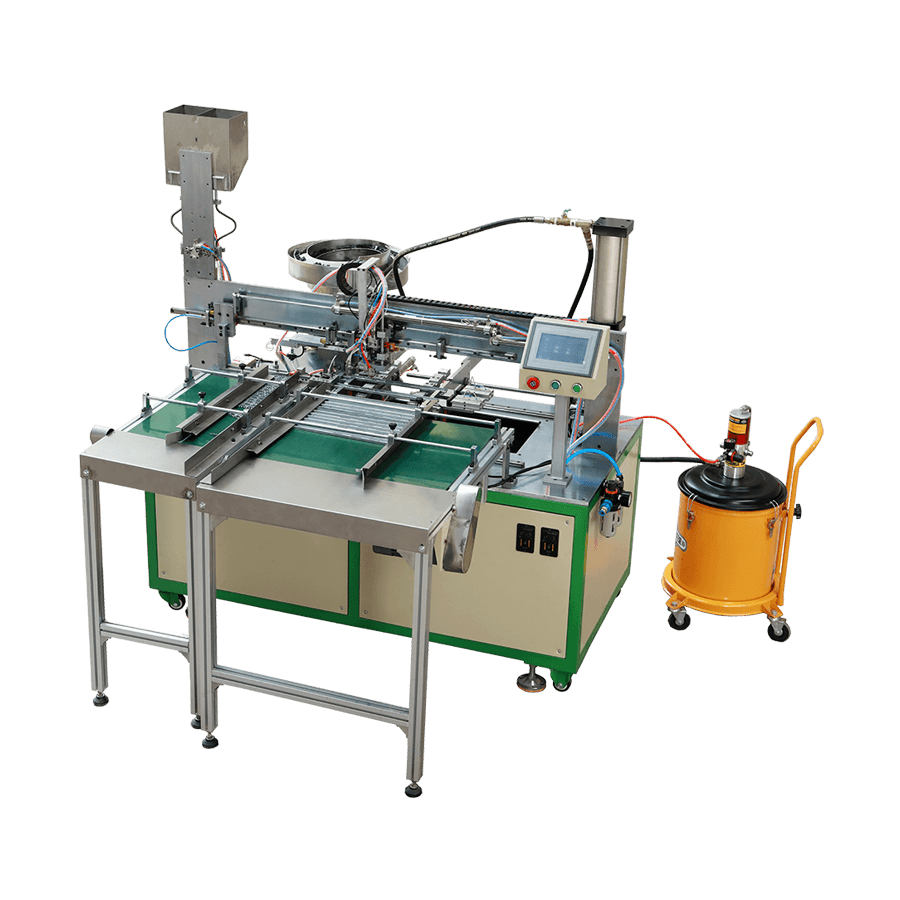

Middle-rail Assembly Machine |
|
|
Power |
220V±5 |
|
Frequency |
50HZ |
|
Total power |
0.6KW |
|
Gas consumption |
0.5-0.8MPA |
|
Weight |
800KG |
|
Dimension |
2100*1100*1500mm |
|
Speed |
20-30 pcs |
| Pneumatic element | Airtac |
|
Main Feature： |
1.Sending material automatically by conveyor belt 2.Assembly and oiling can be completed once in one machine with high safety and reliability 3.In order to assemble the steel ball easily and quickly, this machine uses air blowing way to assemble steel ball 4.Sending plastic automatically by bowl feeder, assemble plastic automatically 5.Using PLC automatic control system, easy to operate |
