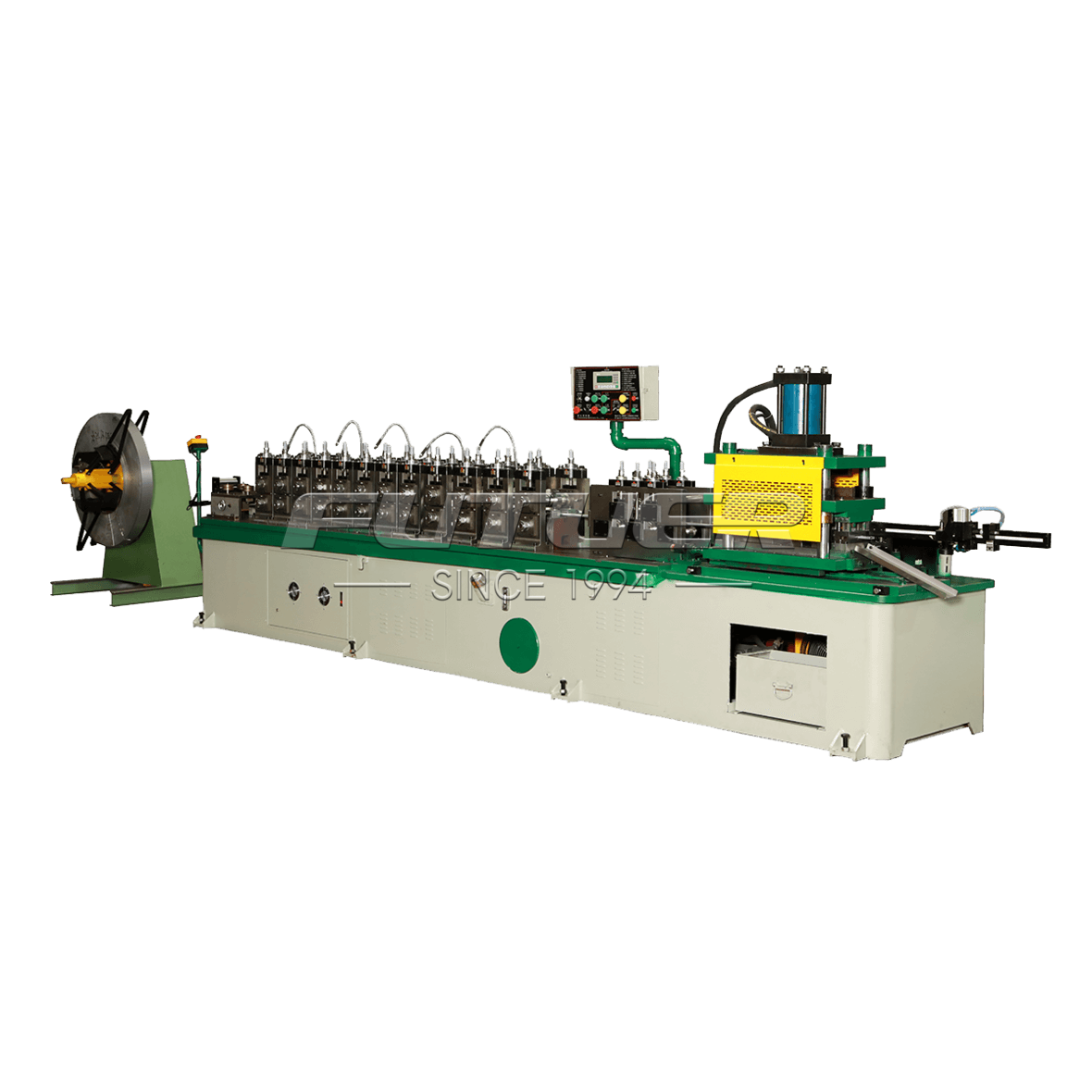

Drawer slide roll forming machine

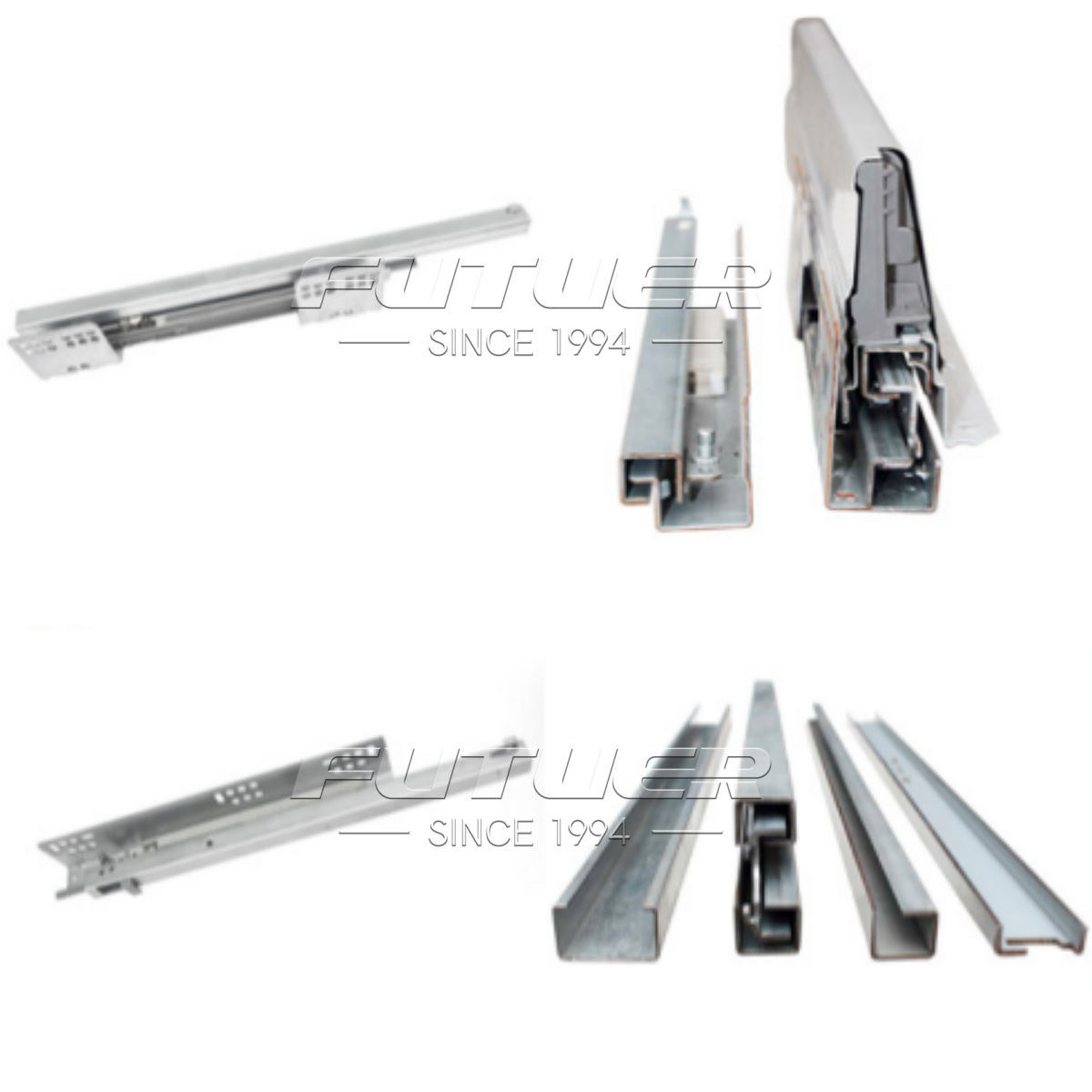

Drawer slide roll forming machines are largely used in different industries for making various types of slides such as cabinet slides, ball bearing slides, automotive sliding, undermount slides,tandem boxes,and heavy-duty slides.

This drawer slide roll forming machines have the ability to reduce the cost of operation and to form materials with high tensile strength, and driver hydraulic hole punch and cut-off to length. It not only improves the slide production efficiency, but also it is able to roll form drawer slides profile with tight tolerance.

Contact Us

Product name

DRAWER SLIDE ROLL FORMING MACHINE

Power

380V/50Hz

Size

5400mmx1100mmx1750mm

Weight

5.0T

Production Capacity

8-10m/min

Applicable steel material

Cold roll steel, Galvanized steel,

Stainless steel

Manufaturing Process

Uncoiling → Guiding → Roll Forming → Straightening → Hole Punch and Cut-off to length









Major Components

Machine frame

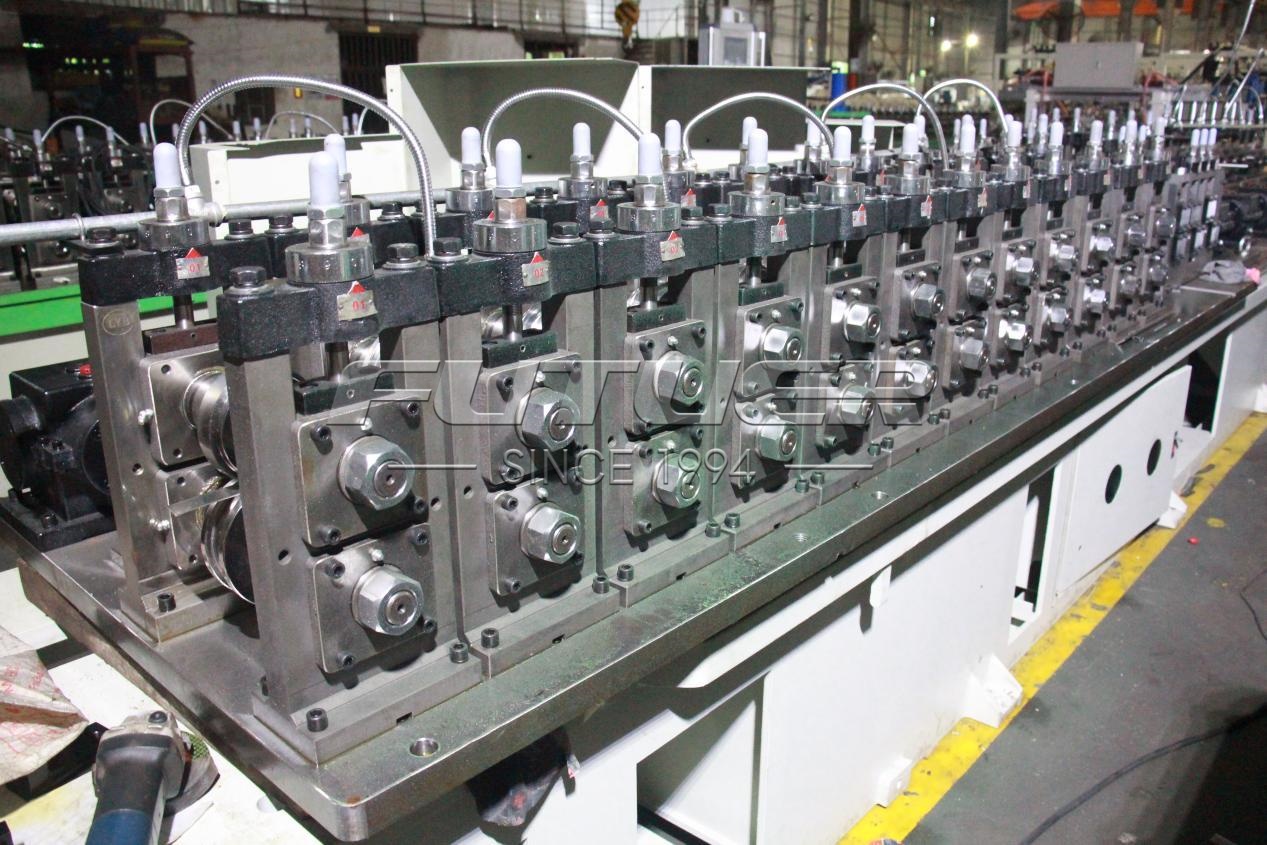

Roll Forming part

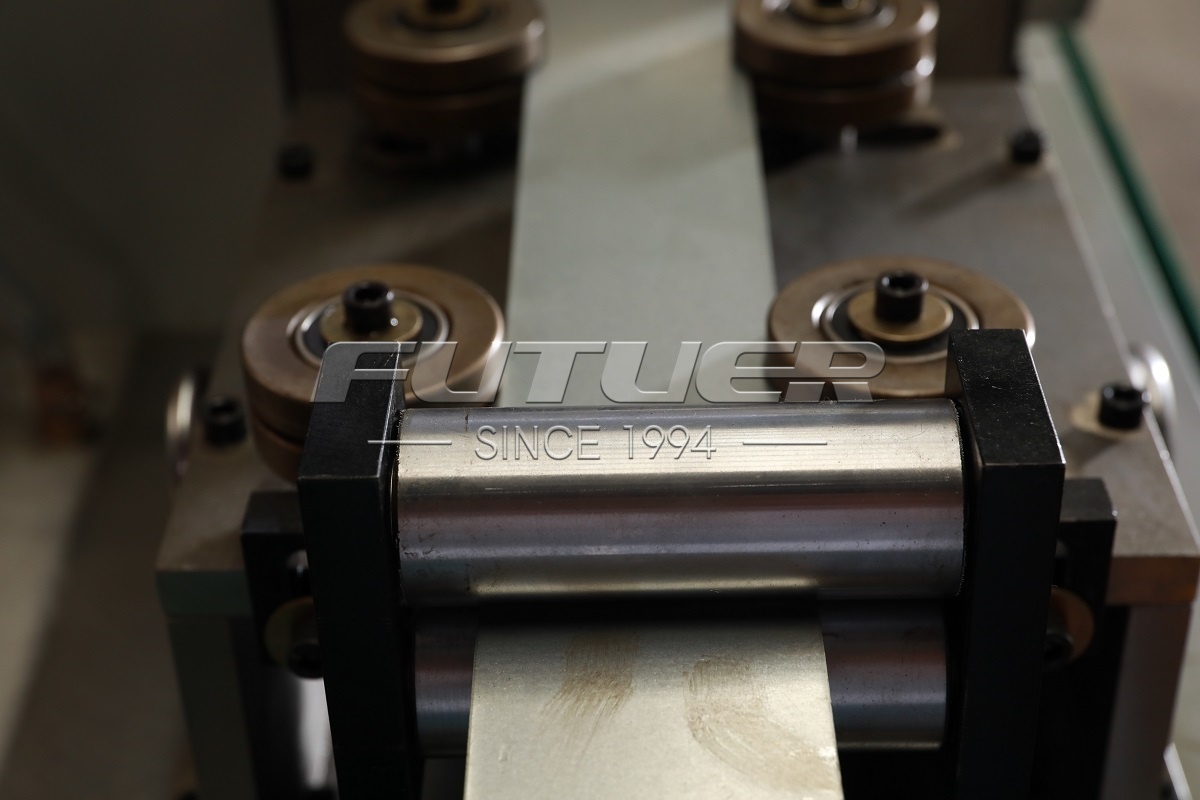

Straighten part

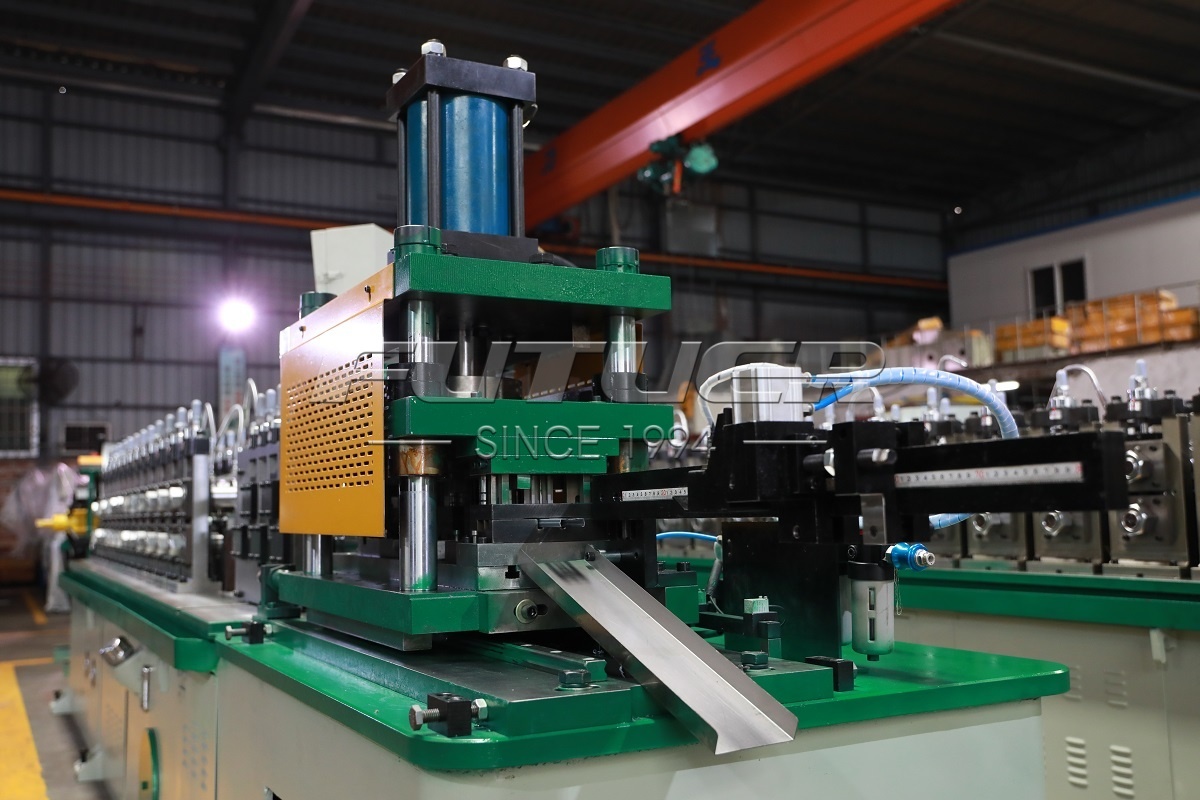

Automatic Punch and Cut-off Unit

Punching and Cutting mould

Hydraulic Power Pack

Coolant system

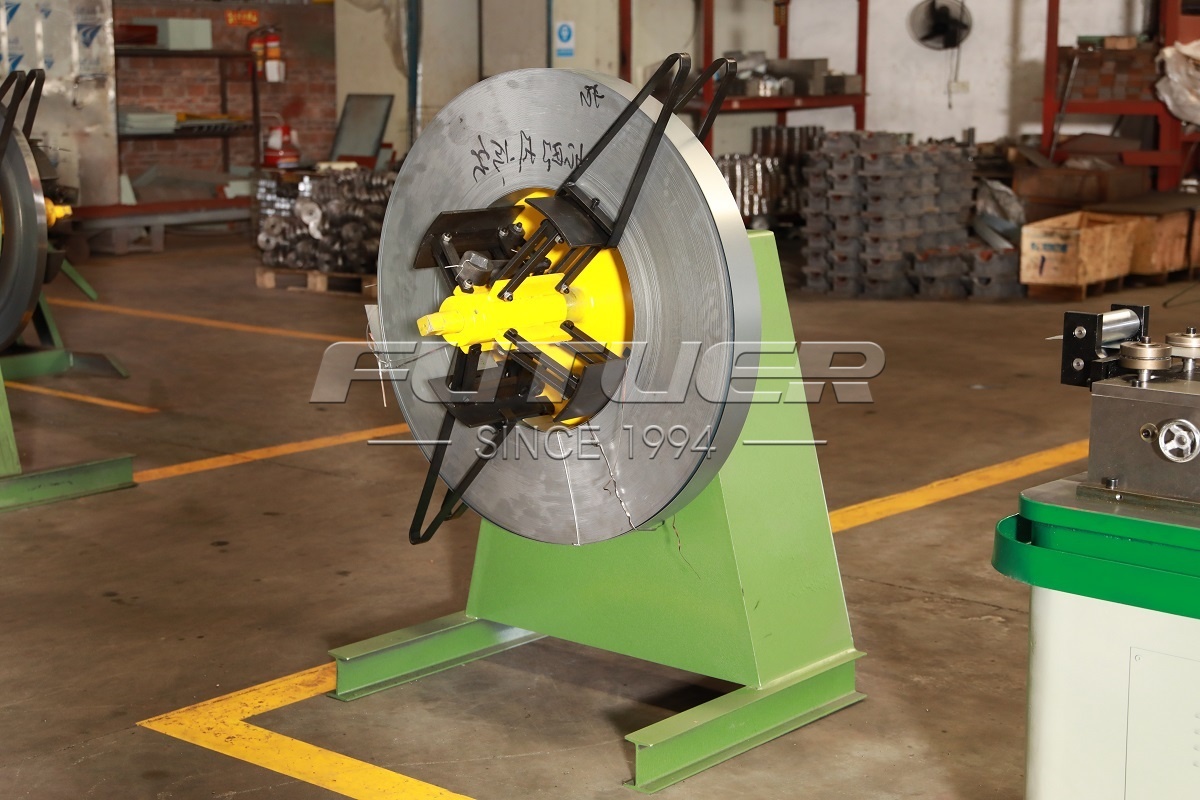

Single Head Decoiler

Length Cut-off Device

Touch screen panel
